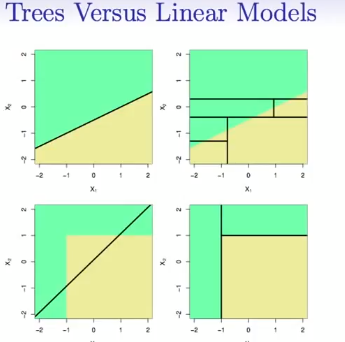

Assume you have a decision boundary represented by two colors in below picture. If the true decision boundary is linear you can see that boxes created by trees are having hard time fitting the true decision boundary and vice versa for linear models when true decision boundary is non linear.

Thus choosing between Tree and Linear models must be based on case by case analysis.


University of Michigan - Ann Arbor

Tree based methods aims to stratify or segment the predictor space (two predictors expressed in x y plane) into several simple regions. We can make a prediction for an observation by taking the mean or mode of the training observations in the region to which the observation belongs.

Tree based methods can be used both for
-	Regression
-	Classification





Tree-based Methods

!!For Regression Trees!!

For number of regions we decided to create for our predictor space
we find the splits that minimizes RSS for each region.

This makes sense because we want to make each region as homogeneous as possible.

However, considering all cases of splits for our predictor space is computationally infeaseable. There are simply too many cases to consider

As a solution to above issue we use 'recursive binary splitting methods' A.K.A Top down, greedy approach.

TOP DOWN - Begin at the top of the tree and then successively split the predictor space

GREEDY - at each step of the tree-building process, the BEST split is made
only considering at that specific step, rather than considering all future possible combinations of splits.

!! For Classification Trees !!

Minimize Gini index to maximize node purity

If there are K number of classes, Gini index is measure of total variance across the K classes. A small value indicates that a node contains predominantly observations from a single class

Additional Methods
- Cross-enthropy : numerically very similar to Gini index.


How to segment predictor space Into Tree

Trees VS Linear Models

Weakness of Trees model is predictive accuracy compared to other models. We can tackle this weakness of Trees by:

 - Bagging
 - Random Forrests
 - Boosting

How to improve the weakness of Trees model

The learning process of decision tree is essentially the process of selecting appropriate features, splitting and constructing tree nodes; The criterion of splitting node is determined by the information gain, information gain ratio and Gini coefficient before and after tree construction. These indicators are not related to the size of the current eigenvalue itself.
