Refers to the lowest point or the minimum value of the wave.

Trough

True or false? The wave amplitude represents the height of the wave from the crest down to the trough.

The crest of a wave is its highest point, representing the maximum upward displacement from its equilibrium position or center line.

Crest (Wave)

The amplitude of a wave is defined as the distance measured from the wave's central line to either the highest point of its crest or the lowest point of its trough.

Google

New Mexico Highlands University

Visual stimuli (light) and auditory stimuli (sound) are both transmitted as wave forms. These waves are defined by specific physical characteristics, most notably their amplitude, wavelength, and timbre.

Physical Characteristics of Waves in Sensation and Perception

Spielman, R. M., Jenkins, W. J., & Lovett, M. D. (2020, April 22). Psychology (2nd ed.). OpenStax. https://openstax.org/books/psychology-2e/pages/1-introduction

OpenStax Psychology (2nd ed.) Textbook

https://openstax.org/details/books/microbiology/

Microbiology covers the scope and sequence requirements for a single-semester microbiology course for non-majors. The book presents the core concepts of microbiology with a focus on applications for careers in allied health. The pedagogical features of the text make the material interesting and accessible while maintaining the career-application focus and scientific rigor inherent in the subject matter. Microbiology’s art program enhances students’ understanding of concepts through clear and effective illustrations, diagrams, and photographs.

Microbiology is produced through a collaborative publishing agreement between OpenStax and the American Society for Microbiology Press. The book aligns with the curriculum guidelines of the American Society for Microbiology.

OpenStax Microbiology Textbook

Wave Amplitude

The wavelength is the length of the wave from one peak to the next.

Wavelength

Timbre is the perceptual quality that allows listeners to distinguish between different sounds, even when those sounds have the same pitch (frequency) and loudness (amplitude). Described as a sound's purity or character, timbre is determined by the complex interplay of a sound wave's frequency, amplitude, and timing. This quality explains why different musical instruments playing an identical note at the same volume still sound distinct from one another.

Timbre as a Perceptual Quality of Sound

Consider two light waves, Wave A and Wave B. Wave B has a greater amplitude (height) and a longer wavelength (distance between peaks) than Wave A. How would the light from Wave B be perceived compared to the light from Wave A?

In human audition, a sound wave's physical characteristics directly correspond to specific psychological perceptions. The frequency of a sound wave is experienced as its pitch, whereas the amplitude of the wave is experienced as its loudness.

Relationship Between Physical Properties of Sound Waves and Auditory Perception

In human vision, the physical properties of a light wave directly determine our perceptual experience. The wavelength and its associated frequency dictate the perceived color or hue of the light. Meanwhile, the amplitude determines the perceived intensity or brightness of that light.

Relationship Between Physical Properties of Light and Visual Perception

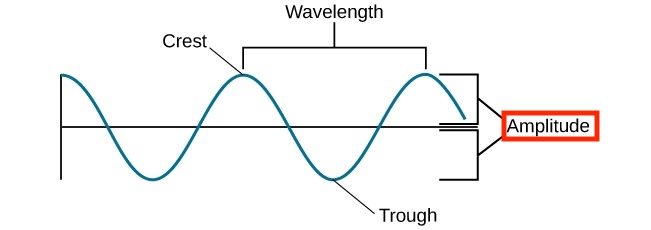

A standard diagram of a wave depicts it as an oscillating line moving equally above and below a central horizontal axis. The highest points are the crests, and the lowest are the troughs. The horizontal distance between two consecutive peaks is the wavelength, while the vertical distance from the baseline to a peak or trough is the amplitude. Furthermore, waves with wider wavelengths exhibit lower frequencies, whereas waves with narrower wavelengths have higher frequencies.
