Based on the following scenario, explain why a Computerized Tomography (CT) scan would be a suitable diagnostic tool.

Emergency Room Imaging Decision

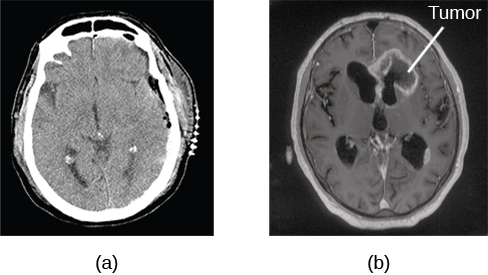

Medical brain scans are valuable for detecting structural anomalies by contrasting the visual characteristics of different tissues. In a standard healthy brain scan, the neural tissue presents a relatively homogeneous appearance. Conversely, the presence of an abnormality, such as a tumor, causes that specific affected area to appear distinctly different from the adjacent healthy brain matter.

Visual Comparison of Healthy and Tumorous Brain Scans

Although Positron Emission Tomography (PET) scans have largely been replaced by fMRI, hybrid CT/PET technology is still used in certain contexts because it combines the strengths of both techniques. In this approach, Computerized Tomography (CT) contributes clear images of brain structures, while PET shows the brain's activity. This combination allows for better imaging of neurotransmitter receptor activity, opening new avenues for research in areas such as schizophrenia.

Hybrid CT/PET Technology

A Computerized Tomography (CT) scan generates a comprehensive image of a specific section of the body, such as the brain, by combining multiple x-ray measurements. The underlying principle is that x-rays are absorbed at different rates by tissues of varying densities. A computer processes these differences to construct a detailed cross-sectional image, which is frequently used to detect abnormalities like tumors or significant brain atrophy.

Google

Columbia University

New Mexico Highlands University

University of California, Davis

- Magnetic resonance imaging (MRI)
- Functional magnetic resonance imagine (fMRI)
- Transcranial magnetic simulation (TMS)
- Positron emission tomography (PET)
- Computerized tomography (CT)
- Electroencephalography (EEG)

Techniques for Brain Imaging

Brain imaging techniques involving radiation include:

- Computerized tomography (CT) scan
- Positron emission tomography (PET) scan

Brain Imaging Techniques Involving Radiation

Spielman, R. M., Dumper, K., Jenkins, W., Lacombe, A., Lovett, M., Perlmutter, M., & OpenStax College,. (2017). Psychology.

Psychology by Rosie M. Spielman

Spielman, R. M., Jenkins, W. J., & Lovett, M. D. (2020, April 22). Psychology (2nd ed.). OpenStax. https://openstax.org/books/psychology-2e/pages/1-introduction

OpenStax Psychology (2nd ed.) Textbook

Magnetic Resonance Imaging (MRI) is a technique that creates images of brain structures. During an MRI, the individual is placed in a machine that produces a powerful magnetic field, causing the hydrogen atoms within the body's cells to align. When this field is switched off, the atoms return to their original state, emitting electromagnetic signals in the process. A computer analyzes these signals, which differ based on tissue density, to construct a detailed image of the brain. This method is commonly used to identify abnormalities such as tumors and injuries.

Magnetic Resonance Imaging (MRI)

Functional Magnetic Resonance Imaging (fMRI) operates on the same principles as MRI but focuses on revealing changes in brain activity over time. It achieves this by tracking variations in blood flow and oxygen levels, as increased neural activity in a brain region requires more oxygenated blood. This allows researchers to map which parts of the brain are active during specific cognitive processes.

Functional Magnetic Resonance Imaging (fMRI)

Positron Emission Tomography (PET) is a technique used to create images of an active, living brain. The procedure involves administering a mildly radioactive substance, known as a tracer, to an individual either orally or via injection. This tracer enters the bloodstream, and its concentration in different brain regions is monitored. Since increased brain activity correlates with higher blood flow, a computer can track the tracer's movement to generate a map that distinguishes between active and inactive brain areas during a specific task.

Positron Emission Tomography (PET)

Computerized Tomography (CT)

PET:
-Dynamic functional changes associated with cognitive skill learning of an adapted version of the Tower of London task

References for Studies Using Brain Imaging

Not necessarily an imaging technique, but it is used to uncover which parts of the brain are used in different tasks. It does this by disrupting the functioning of a particular area of the brain by creating a pulsating magnetic field using a stimulating coil over that portion of the brain.

Transcranial Magnetic Stimulation (TMS)

Electroencephalography (EEG) is a technique used to obtain a measure of the brain's overall electrical activity. It involves placing an array of electrodes on a person's scalp to record brainwaves. The resulting data provides high-precision information, accurate to the millisecond, about the frequency and amplitude of these waves, making it ideal for applications like sleep studies where precise spatial information is not required.

Electroencephalography (EEG)

The image presents a side-by-side comparison of three distinct brain imaging techniques. From left to right, they are: a Positron Emission Tomography (PET) scan, which uses a color map to visualize metabolic activity; a Computerized Tomography (CT) scan, which displays anatomical structures like bone and soft tissue in grayscale; and a Functional Magnetic Resonance Imaging (fMRI) scan, which overlays areas of brain activity, shown in orange, onto a detailed structural image.

Visual Comparison of PET, CT, and fMRI Scans

Functional Magnetic Resonance Imaging (fMRI) offers significant advantages over Positron Emission Tomography (PET) scans. Specifically, fMRI produces images with greater structural detail and provides better temporal accuracy, meaning it can pinpoint the timing of brain activity more precisely than PET scans.

Comparison of fMRI and PET Scans

Due to their high level of detail, both MRI and fMRI are valuable tools in psychological research. They are frequently used to compare the brains of healthy individuals with those of individuals diagnosed with psychological disorders. This comparative approach helps researchers identify specific structural and functional differences that may be associated with these conditions.

Using MRI and fMRI to Study Psychological Disorders

A cognitive neuroscientist is designing an experiment to determine the exact moment, down to the millisecond, that the brain's auditory cortex responds to a sudden, brief sound. Which of the following brain imaging techniques would be the most suitable for this specific research goal?

A hospital is considering two different patient cases for a brain scan. Case 1 involves a 70-year-old patient who has suddenly lost the ability to speak, and doctors suspect a major stroke or a fast-growing tumor. Case 2 involves a healthy 25-year-old athlete who wants a scan for 'peace of mind' before a major competition, despite having no symptoms. Considering that some brain imaging techniques involve exposing the patient to radiation, which case presents a more ethically and medically sound justification for using such a technique? Defend your choice.
