*Pros:*
- The architecture allows CNNs to learn the position and scale of features in a variety of images, making them especially good at the classification of hierarchical or spatial data and the extraction of unlabeled features.
- Because of **Parameter sharing** and **Sparsity of connections** the neural network has significantly fewer parameters that allows it to train a smaller training sets and be less prone to overfitting.

*Cons:*
- Unfortunately, this structure requires CNNs to only accept fixed-size inputs—and it only allows them to provide fixed-size outputs.

Pros and Cons of CNN Architecture

Fully connected layer is a traditional multilayer perceptron structure. Its input is a one-dimensional vector representing the output of the previous layers. Its output is a list of probabilities for different possible labels attached to the image (e.g. dog, cat, bird). The label that receives the highest probability is the classification decision.

Fully Connected Layer - Classification

Here is a clear 3D representation of the convolution Neural Network for detecting a written number. You can see clearly which layer outputs depend on which inputs:
https://www.cs.ryerson.ca/~aharley/vis/conv/

3D Visualization of a Convolution Neural Network

Three classic networks

A “filter”, sometimes called a “kernel”, is passed over the image, viewing a few pixels at a time (for example, 3X3 or 5X5). The convolution operation is a dot product of the original pixel values with weights defined in the filter. The results are summed up into one number that represents all the pixels the filter observed.

Convolution Filter (Kernel)

In a convolutional layer, instead of manually specifying numbers of cells of the filters (kernels), we define each of them as weights and we add a single bias number to each cell. Then, we train the model with these new parameters the same way as we optimize the weights and biases of neurons. So, the number of parameters in each filter (kernel) will be the number of its cells plus one bias.

The first ConvLayer is responsible for capturing the Low-Level features such as edges, color, gradient orientation, etc. With added layers, the architecture adapts to the high-level features as well, giving us a network which has the wholesome understanding of images in the dataset, similar to how we would.

Convolutional Layer (ConvLayer)

Pooling is the process of down-sampling, i.e., reducing the size of the matrix. A filter is passed over the results of the previous layer and outputs one number out of each group of values.

Pooling Layer in Convolutional Deep Learning

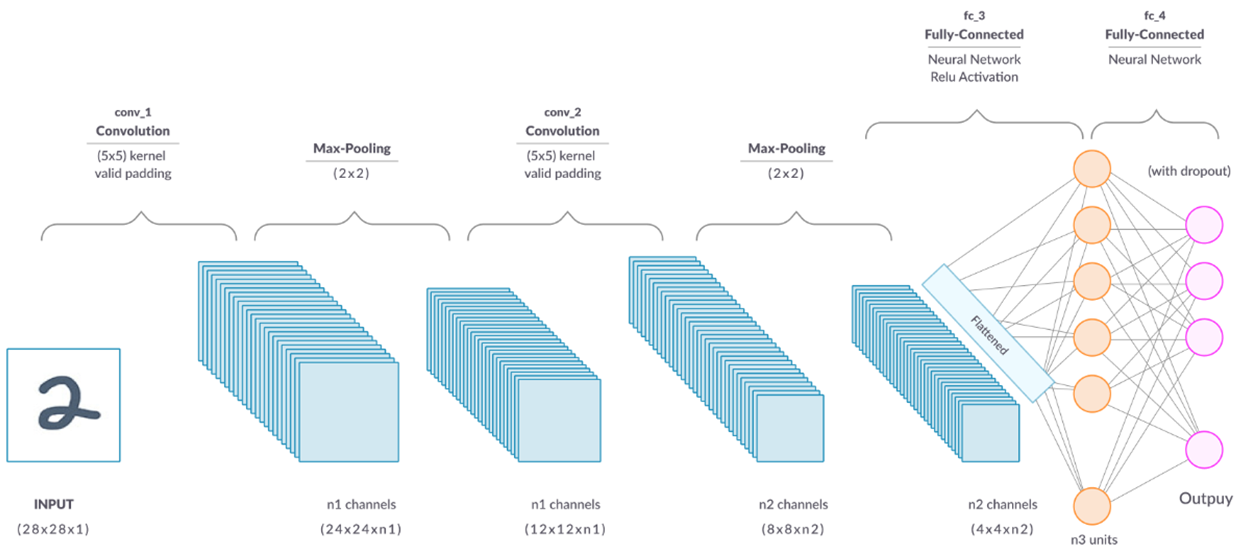

Example of a Convolutional Neural Network Architecture

- Artificial neural network that builds on constructs from pyramid cells in the cerebral cortex
- Residual neural network do this by using shortcuts to jump over some layers


ResNets Convolutional Neural Network

There are three main classic neural network architectures:
- LeNet-5
- AlexNet
- VGG - 16

Classic Convolutional Neural Network Architectures for Object Detection in Images

An Inception network (GoogLeNet) is a 22 layer deep neural network that takes many Inception modules (including many convolutional layers) and puts them together, which allow for multiple feature detection.

GoogLeNet is highly accurate, however, because it has so many layers it is more prone to overfitting.

Inception Network (GoogLeNet)

The architecture means the overall structure of the network, where most neural networks are organized into groups of units called layers. Different network architecture can have different amount of layers and connections. The main thing to keep in mind when choosing an architecture design, is choosing the depth of the network and the width of each layer.

Architecture Design

We can compare convolution to a fully connected net, but with an inﬁnitely strong prior over its weights:

1. the weights for one hidden unit must be identical to the weights of its neighbor but shifted in space.
2. the weights must be zero, except for the small, spatially contiguous receptive ﬁeld assigned to that hidden unit.

Pooling is similar:

1. contains only local interactions and is equivariant to translation
2. each unit should be invariant to small translations.


Convolution and Pooling as an Inﬁnitely Strong Prior

CNNs are made up of three-layer types—convolutional, pooling and fully-connected (FC).

In the convolutional layers, the input matrix is passed through a set of filters that output a feature map. This output is then sent to a pooling layer, which reduces the size of the feature map. This helps reduce the processing time by condensing the map to its most essential information.

The convolutional and pooling processes are repeated several times, with the number of repeats depending on the network, after which the condensed feature map outputs are sent to a series of FC layers. These FC layers then flatten the maps together and compare the probabilities of each feature occurring in conjunction with the others, until the best classification is determined.

University of Michigan - Ann Arbor

Convolutional networks, also known as convolutional neural networks, or CNNs, are a specialized kind of neural network for processing data that has a known grid-like topology. Examples include time-series data, which can be thought of as a 1-D grid taking samples at regular time intervals, and image data, which can be thought of as a 2-D grid of pixels.

The network employs a mathematical operation called convolution. Convolution is a specialized kind of linear operation. Convolutional networks are simply neural networks that use convolution in place of general matrix multiplication in at least one of their layers.

The CNN gets its power from the following concepts:
- Sparse connectivity
- Parameter sharing

Convolutional Neural Network (CNN)

A helpful website that introduces neural networks:
https://missinglink.ai/guides/neural-network-concepts/

Neural Network Reference

A helpful website for understanding how CNN works:
https://towardsdatascience.com/a-comprehensive-guide-to-convolutional-neural-networks-the-eli5-way-3bd2b1164a53

CNN Reference

CNNs are currently being applied to several applications, including:

 - Computer vision—medical image analysis, image recognition, face detection and video classification
 - Natural Language Processing (NLP)—semantic parsing, sentence modeling and search query retrieval
 - Drug discovery—the discovery of chemical features and prediction of medicinal benefits

Applications of Convolutional Neural Networks

CNNs and RNNs are not mutually exclusive, as both can perform classification of image and text inputs, creating an opportunity to combine the two network types for increased effectiveness. This is especially true if the input to be classified is visually complex with added temporal characteristics that a CNN alone would be unable to process.

Typically, when these two network types are combined, sometimes referred to as a CRNN, inputs are first processed by CNN layers whose outputs are then fed to RNN layers. CNN Long Short-Term Memory (LSTM) architectures are particularly promising, as they facilitate analysis of inputs over longer periods than could be achieved with lower-level RNN architecture types.

Currently, these hybrid architectures are being explored for use in applications like video scene labeling, emotion detection or gesture recognition, video identification or gait recognition, and DNA sequence prediction.

Hybrid of Convolutional and Recurrent Neural Network

- Python: conv_forward
- TensorFlow: tf.nn.conv2d
- Keras: Conv2D
- Pytorch: torch.nn.Conv2d
- Caffe: message ConvolutionParameter
- Theano: theano.tensor.nnet.conv.conv2d

Methods to Calculate Convolution in Python

Convolutional Neural Networks Architecture

A 3D CNN is similar to a 2D CNN except that it differs in (non-exhaustive listing):
1- 3D Convolution Layers

2- 3D MaxPool Layers

3D Convolutional Neural Network

Visualizing and Understanding Convolutional Networks Paper

- Convolutional neural network can be used for obtaining high- dimensional images rather than being used in class prediction for logistic regression  or value prediction for regression problem

- Output of the CNN model can be a tensor S(i,j,k) which represent the pixel(j,k) of ith class, such a collaborative  effort can be used to precisely form a perfect image as the output.

Strategies to get output dimension same as the input are

- Pooling is completely avoided or can use pooling with unit stride.

- Pixel-wise labelling involves initial guess of image pixels and refining this guess by interacting with neighboring pixels by parameter sharing.

Structured Output from CNN

A Convolutional Recurrent Neural Network (CRNN) is a combination of a Convolutional Neural Network (CNN) and a Recurrent Neural Network (RNN).
-CNN are specialized networks for processing data that use a specialized, linear mathematical operation, also known as a convolution.
-RNN is specialized for processing a sequence of inputs $x^{(1)}, . . . , x^{(τ)}$ and each time adds additional layers of comprehension on top of the previous inputs.
-The goal of a CRNN is to take advantage of CNNs for local feature extraction and RNNs for temporal summarization of the extracted features.
