The depth of a model can be measured in two main approaches:

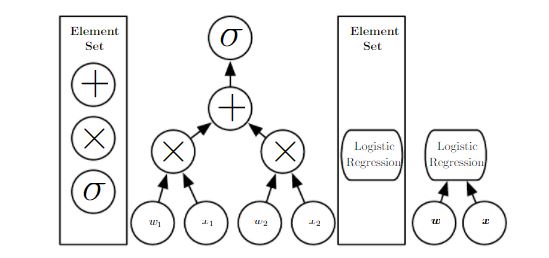

- Analyzing the length of sequential pathway of an input to the output. The depth can vary by the definition of a unit operation. The figure below illustrates how a logistic regression can be viewed as a model with a depth of 3 or 1.
- Analyzing how the concepts are related to each other.

University of Michigan - Ann Arbor

Johns Hopkins University

For a feedforward neural network, the depth of the network is the number of hidden layers plus one (as the output layer is also parameterized). The width of the network is the dimensionality of its hidden layers.

The main architectural considerations for designing a neural network are choosing the depth of the network and the width of each layer.


Depth and Width for Neural Networks

Goodfellow, I., Bengio, Y., & Courville, A. (2016). $\mathit{Deep \ Learning.}$ MIT Press. Retrieved from [www.deeplearningbook.org](https://www.deeplearningbook.org)

Deep Learning

A feedforward network with a single layer is suﬃcient to representany function, but the layer may be infeasibly large and may fail to learn and generalize correctly. In many circumstances, using deeper models can reduce the number of units required to represent the desired function and can reduce the amount of generalization error.

As is shown in the figure, empirical results show that deeper networks generalize better when used to transcribe multidigit numbers from photographs of addresses. Data from Goodfellow et al. (2014d). The test set accuracy consistently increases with increasing depth.


Effect of Depth for Neural Networks

In a neural network with many time steps or layers, a gradient at the early layer is the product of all the terms from the later layers, which leads to an inherently unstable situation. Especially when the value of gradient has become so small, it no longer updates properly or is vanished eventually. Exploding gradient can be considered as the opposite of vanishing process. The updated weights using gradient descent become so large that they cause the whole network to become unstable, which leads to numerical overflow.
