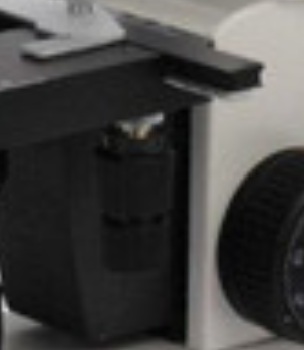

The x-y mechanical stage knobs are used to precisely position a secured specimen over the microscope's light source. Turning these knobs moves the slide horizontally across the surface of the stage, but does not alter the vertical height of the stage.

Google

A compound light microscope consists of multiple interacting structural and optical components. The base houses an illuminator and a rheostat for lighting. An arm supports a stage equipped with x-y mechanical knobs to secure and position the specimen. Below the stage, a condenser and diaphragm regulate the incoming light. Above the stage, objective lenses on a revolving nosepiece and ocular lenses within the eyepieces provide magnification. Finally, coarse and fine focusing knobs on the arm adjust the stage's height to bring the specimen into sharp focus.

Parts of a Microscope

https://openstax.org/details/books/microbiology/

Microbiology covers the scope and sequence requirements for a single-semester microbiology course for non-majors. The book presents the core concepts of microbiology with a focus on applications for careers in allied health. The pedagogical features of the text make the material interesting and accessible while maintaining the career-application focus and scientific rigor inherent in the subject matter. Microbiology’s art program enhances students’ understanding of concepts through clear and effective illustrations, diagrams, and photographs.

Microbiology is produced through a collaborative publishing agreement between OpenStax and the American Society for Microbiology Press. The book aligns with the curriculum guidelines of the American Society for Microbiology.

OpenStax Microbiology Textbook

The fine focusing knob makes small-scale vertical adjustments to the microscope's stage to precisely sharpen an image. It is particularly essential when using higher magnification objective lenses, such as $${}40	imes$$ or $${}100	imes$$, where slight movements drastically affect focus.

Fine Focus Knob

The ocular lens is situated within the eyepiece of a microscope and typically provides a magnification of $${}10	imes$$. Depending on the design, a microscope may be monocular, containing one ocular lens, or binocular, containing two.

Ocular Lens

Objective lenses are located on a rotating nosepiece at the opposite end of the body tube from the ocular lens. They provide varying levels of magnification that typically range from $${}4	imes$$ to $${}100	imes$$, with the specific magnification value typically designated on the metal casing of each lens.

Objective Lenses

The stage is a platform on the microscope where a glass slide holding a specimen is securely clipped into place for observation. It features a central opening that allows light emitted from the illuminator below to pass upward and illuminate the specimen.

Microscope Stage

Mechanical Stage Knobs

The coarse focusing knob is utilized to bring a microscopic image into initial focus by making large-scale vertical adjustments to raise or lower the stage. It is primarily used in conjunction with lower magnification objective lenses, such as $${}4	imes$$ and $${}10	imes$$.

Coarse Focus Knob

An illuminator provides the intense lighting required to properly observe highly magnified images, which naturally become dimmer as magnification increases. In a brightfield microscope, this light source is typically a high-intensity bulb situated below the stage.

Microscope Illuminator

The condenser is a lens positioned below the microscope stage that maximizes illumination by focusing all light rays from the illuminator directly onto the specimen. Its vertical position is adjusted via the condenser focus knob to find the optimal distance, after which it should not be moved for brightness adjustments.

Condenser Lens

The diaphragm is an adjustable mechanism situated between the condenser lens and the specimen that regulates light exposure. If less-than-maximal illumination is required, users can easily control the amount of light striking the specimen by opening or closing the diaphragm.

Microscope Diaphragm

A rheostat functions as a dimmer switch on a microscope, providing an alternative method to regulate image brightness. It achieves this by directly controlling the electrical intensity of the high-intensity bulb within the illuminator.
