The fine focusing knob makes small-scale vertical adjustments to the microscope's stage to precisely sharpen an image. It is particularly essential when using higher magnification objective lenses, such as $${}40	imes$$ or $${}100	imes$$, where slight movements drastically affect focus.

Fine Focus Knob

The ocular lens is situated within the eyepiece of a microscope and typically provides a magnification of $${}10	imes$$. Depending on the design, a microscope may be monocular, containing one ocular lens, or binocular, containing two.

Ocular Lens

Objective lenses are located on a rotating nosepiece at the opposite end of the body tube from the ocular lens. They provide varying levels of magnification that typically range from $${}4	imes$$ to $${}100	imes$$, with the specific magnification value typically designated on the metal casing of each lens.

Objective Lenses

The stage is a platform on the microscope where a glass slide holding a specimen is securely clipped into place for observation. It features a central opening that allows light emitted from the illuminator below to pass upward and illuminate the specimen.

Microscope Stage

The x-y mechanical stage knobs are used to precisely position a secured specimen over the microscope's light source. Turning these knobs moves the slide horizontally across the surface of the stage, but does not alter the vertical height of the stage.

Mechanical Stage Knobs

The coarse focusing knob is utilized to bring a microscopic image into initial focus by making large-scale vertical adjustments to raise or lower the stage. It is primarily used in conjunction with lower magnification objective lenses, such as $${}4	imes$$ and $${}10	imes$$.

Coarse Focus Knob

An illuminator provides the intense lighting required to properly observe highly magnified images, which naturally become dimmer as magnification increases. In a brightfield microscope, this light source is typically a high-intensity bulb situated below the stage.

Microscope Illuminator

The condenser is a lens positioned below the microscope stage that maximizes illumination by focusing all light rays from the illuminator directly onto the specimen. Its vertical position is adjusted via the condenser focus knob to find the optimal distance, after which it should not be moved for brightness adjustments.

Condenser Lens

The diaphragm is an adjustable mechanism situated between the condenser lens and the specimen that regulates light exposure. If less-than-maximal illumination is required, users can easily control the amount of light striking the specimen by opening or closing the diaphragm.

Microscope Diaphragm

A rheostat functions as a dimmer switch on a microscope, providing an alternative method to regulate image brightness. It achieves this by directly controlling the electrical intensity of the high-intensity bulb within the illuminator.

Microscope Rheostat

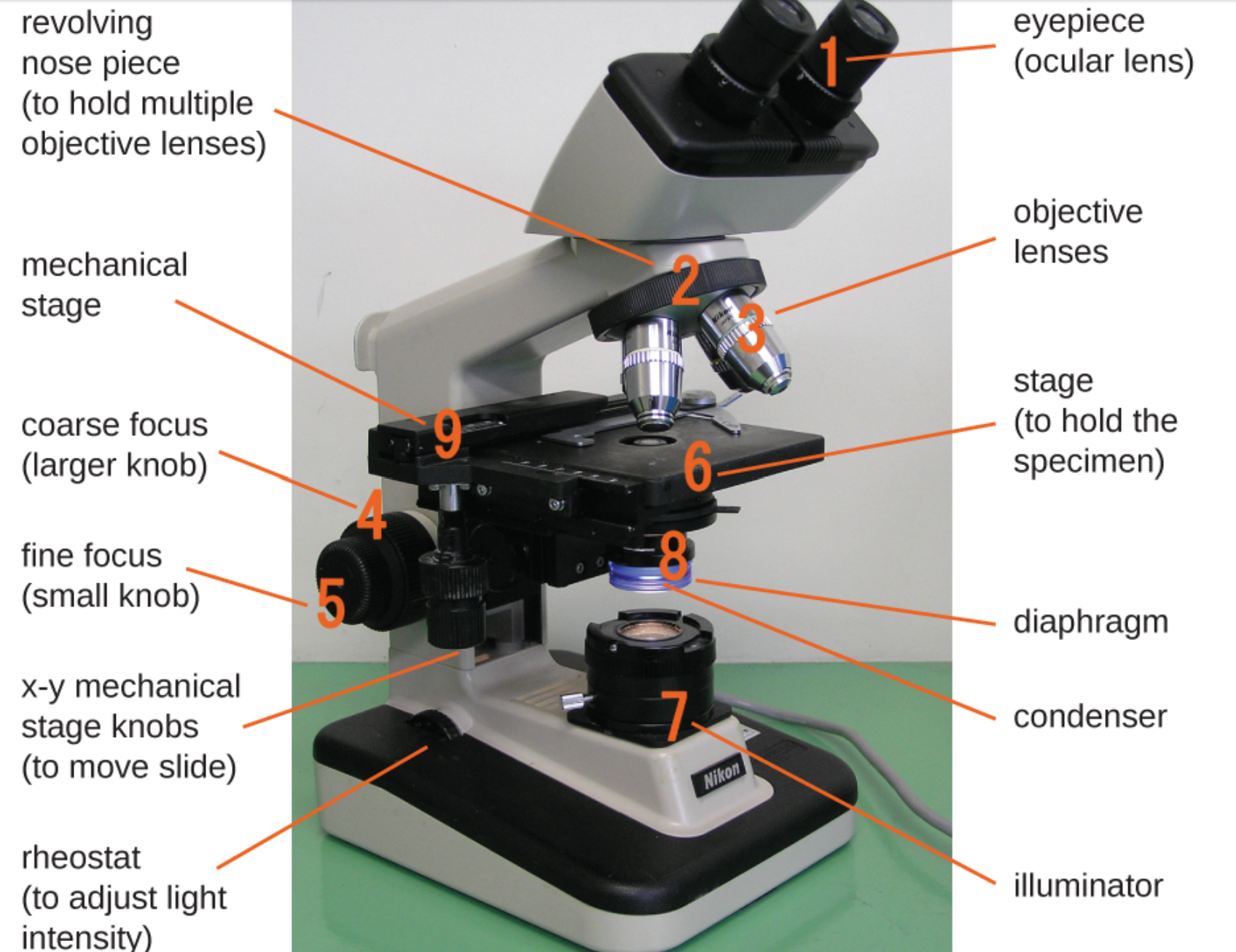

A compound light microscope consists of multiple interacting structural and optical components. The base houses an illuminator and a rheostat for lighting. An arm supports a stage equipped with x-y mechanical knobs to secure and position the specimen. Below the stage, a condenser and diaphragm regulate the incoming light. Above the stage, objective lenses on a revolving nosepiece and ocular lenses within the eyepieces provide magnification. Finally, coarse and fine focusing knobs on the arm adjust the stage's height to bring the specimen into sharp focus.

Google

The brightfield microscope, considered the most commonly used type of microscope, is a compound microscope that employs two or more lenses to produce a dark image of a specimen against a bright background. These microscopes are illuminated by a light source focused by a condenser lens, and they can be monocular (possessing a single eyepiece) or binocular (possessing two eyepieces), with each eyepiece containing an ocular lens.

Brightfield Microscopes

https://openstax.org/details/books/microbiology/

Microbiology covers the scope and sequence requirements for a single-semester microbiology course for non-majors. The book presents the core concepts of microbiology with a focus on applications for careers in allied health. The pedagogical features of the text make the material interesting and accessible while maintaining the career-application focus and scientific rigor inherent in the subject matter. Microbiology’s art program enhances students’ understanding of concepts through clear and effective illustrations, diagrams, and photographs.

Microbiology is produced through a collaborative publishing agreement between OpenStax and the American Society for Microbiology Press. The book aligns with the curriculum guidelines of the American Society for Microbiology.

OpenStax Microbiology Textbook

At very high magnifications, the small amount of air between a specimen and the lens can scatter light rays before they are focused, compromising resolution due to the large difference in refractive indices between air and glass. To prevent this, a drop of immersion oil is applied to fill the space between the specimen and a specialized oil immersion lens. Because the oil has a refractive index very similar to that of glass, it increases the maximum angle at which light can enter the lens, thereby capturing more light and improving the resolution of the image.

Oil Immersion Lenses

The total magnification achieved by a compound microscope is determined by the product of the ocular lens magnification and the objective lens magnification. For instance, if an ocular lens magnifies by $${}10	imes$$ and the selected objective lens magnifies by $${}40	imes$$, the total magnification of the resulting image would be $${}400	imes$$.

Total Magnification

Parts of a Microscope

Brightfield microscopes can produce maximally sharp images at magnifications up to approximately $${}1000	imes$$. Increasing magnification beyond this point results in a larger image but does not provide any additional resolution. This specific magnification range allows observers to clearly see objects as small as bacteria, which become visible around $${}400	imes$$, but it is not powerful enough to visualize smaller structures like viruses.

Brightfield Microscope Magnification Limit

A darkfield microscope is a brightfield microscope modified with a small opaque light stop placed on the condenser. This component blocks most direct light from the illuminator, ensuring that the only light reaching the objective lens is light scattered, refracted, or reflected by structures in the specimen. Consequently, it creates high-contrast, high-resolution images showing bright objects on a dark background without the use of stains, making it exceptionally useful for viewing live, delicate specimens that might be killed by staining procedures.
