If you have a huge training set with 5000000 training samples,
$X=[ x^{(1)},  x^{(2)}  ,...,  x^{(5000000)}]$
Let's say each of your baby training sets have just 1,000 examples each. So, you take the first mini-batch as $X^{\{ 1\}} =[x^{(1)},  x^{(2)}  ,...,  x^{(1000)}] $. And then you take home the next 1,000 samples $X^{\{2\}} =[x^{(1001)},  ...,  x^{(2000)}] $ and so on.

Altogether you would have 5,000 of these mini-batches and then similarly you do the same thing for Y. Hence we end up with mini-batches $X^{\{ T\}}, Y^{\{ T\}}$, T = 1,2...,5000.

An Example of Mini-Batches

for t = 1, 2,...N: (N is the number of mini-batches)
 - Forward propagate on $X^{\{ t\}}$
 - Compute cost function $J^{\{ t\}}$
 - Backpropagate to compute gradients wrt $J^{\{ t\}}$ (using $X^{\{ t\}}$,$Y^{\{ t\}}$)
 - $W^{[l]} =W^{[l]}-\alpha dW^{[l]}, b^{[l]} = b^{[l]}-\alpha db^{[l]}$

This is one pass through your training set using mini-batch gradient descent. It is also called doing one epoch of training.

Mini-Batch Gradient Descent Algorithm

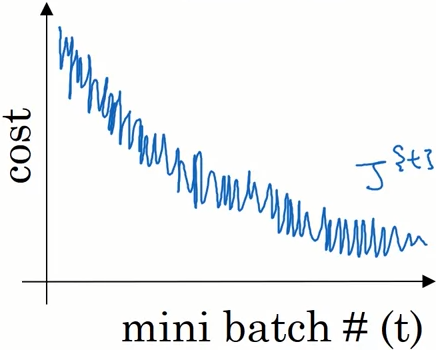

Batch gradient descent (batch size = N) takes relatively low noise, relatively large steps. And you could just keep matching to the minimum. However, it may take a long time to process and need additional memory.

Stochastic gradient descent (batch size = 1)  is easy to fit in memory and efficient for large datasets. But it can be extremely noisy since sometimes you hit in the wrong direction if that a training example happens to point in a bad direction. It won't ever converge, and will always just kind of oscillate and wander around the region of the minimum.

in practice, mini-batch gradient descent with batch size in between 1 and N works better. It's not guaranteed to always head toward the minimum but it tends to head more consistently in direction of the minimum.

Batch vs Stochastic vs Mini-Batch Gradient Descent

First, we take a constant learning rate represented by the blue line. We see that, as we iterate, the steps are large and noisy and do not converge on a minimum. Instead, it wanders around the minimum.

Next, we take a decaying learning rate represented by the green line. At the start, the learning rate takes large steps with each iteration. But the learning rate is reduced or decayed as it approaches the minimum. This slower learning rate takes smaller tighter steps around the minimum and is closer to convergence.

This method allows us to have relatively fast learning during the initial phases with large steps, but also converge to a minimum during the final phases with slower learning rates and smaller steps.

Example Using Mini-Batch Gradient Descent (Learning Rate Decay)

If your training set is small (m < 2,000), it's better to use Batch Gradient Descent.
Make sure that every mini-batch fits in your CPU/GPU memory.
It is a common practice to use powers of two as a mini-batch size: 64, 128, 256. This is related to the fact that the number of physical processors of the GPU tend to be a power of 2.
If the batch size is too small, the loss curve will oscillate and affect the stability of training

Mini-Batches Size

Which of these statements about mini-batch gradient descent do you agree with?

Why is the best mini-batch size usually not 1 and not m, but instead something in-between?

Which of the following do you agree with?

Suppose your learning algorithm’s cost J, plotted as a function of the number of iterations, looks like the image below:

If we choose the mini-batch size to be 1, then it gives the algorithm called Stochastic Gradient Descent or SGD.

In this case, on every iteration, you're taking gradient descent with just a single training example
$w = w - \alpha \nabla_w J(x^i, y^i; w)$

The most important property of SGD is that computation time per step does not grow with the number of examples. This makes SGD very efficient with large training sets.

The learning rate is a hyperparameter that must be adjusted. Unlike regular parameters of a model (weights like w and b), which are learned by the algorithm from the training set, hyperparameters are special parameters chosen by the algorithm designer that affect how the algorithm works.

Stochastic Gradient Descent Algorithm

The expression $$\frac{\partial L_{\theta_t}(\mathcal{D}_{\mathrm{mini}})}{\partial \theta_t}$$ represents the gradient of the loss function, $$L$$, with respect to the model parameters, $$\theta_t$$. This gradient is computed on a specific mini-batch of training samples, $$\mathcal{D}_{\mathrm{mini}}$$, and indicates the direction of the steepest increase in the loss for that batch.

Loss Gradient over a Mini-batch

Batch Gradient Descent requires the entire dataset to be processed to complete one step. Gradient Descent can require many steps in some cases which causes this procedure to be very slow and inefficient for large datasets.

Mini-Batch Gradient Descent solves this problem by taking small groups of random data points called mini-batches and using them to estimate each step.  The mini-batches are usually a size greater than 1 but less than N (dataset size). The smaller steps allow for a much faster algorithm.

University of Michigan - Ann Arbor

Google

Claude

When a neural network trains, it uses an algorithm to determine the optimal weights for the model, called an optimizer.
There are several optimizer algorithms, such as:
- Gradient descent
- Mini-batch gradient descent
- Gradient descent with momentum
- RMSprop
- Adam optimization algorithm
- Nesterov momentum
- AdaGrad

Deep Learning Optimizer Algorithms

Assuming that the error function is $J(w)$ with one parameter $w$, to minimize the error, we can update the weight $w$ as follows.
$$w = w - \alpha * \frac{dJ(w)}{dw}$$
, where $\alpha$ is a learning rate, and $\frac{dJ(w)}{dw}$ is the derivative of $J(w)$ with respect to $w$.

If the error function has two or more parameters, for example, a weight $w$ and a bias $b$, we can update them one by one.
$$w = w - \alpha * \frac{\partial J(w,b)}{\partial w}$$
$$b = b - \alpha * \frac{\partial J(w,b)}{\partial b}$$
, where $\partial$ is a stylish cursive $d$, denoting the partial derivatives.

(Batch) Gradient Descent (Deep Learning Optimization Algorithm)

Machine Learning Yearning, a free ebook from Andrew Ng, teaches you how to structure Machine Learning projects.
https://www.deeplearning.ai/machine-learning-yearning/

Note: The content of the book is aligned with the Coursera Deeplearning.ai specialization.  https://www.deeplearning.ai/deep-learning-specialization/

Machine Learning Yearning (Deeplearning.ai)

Reference of Foundations of Large Language Models Course

Dive into Deep Learning

Mini-Batch Gradient Descent

The basic idea of gradient descent with momentum is to compute an exponentially weighted average of your gradients, and then use that gradient to update your weights instead. It almost always works faster than the standard gradient descent algorithm.


Gradient Descent with Momentum

Here is a very helpful article on different types of optimizer algorithms
https://ruder.io/optimizing-gradient-descent/index.html

An overview of gradient descent optimization algorithms

Learning rate decay is the gradual reduction of the learning rate as a function of time to speed up the learning algorithm. Decaying the learning rate as the gradient descent approaches completion reduces noise and facilitates a tighter convergence to a target.

Learning Rate Decay

Gradient descent is a fundamental optimization algorithm that leverages gradients to minimize a model's loss function. Because the gradient of a function points in the direction of steepest ascent, moving the model's parameters in the opposite direction iteratively lowers the loss. Each step of such gradient-based optimization algorithms requires calculating the exact gradient of the loss with respect to the parameters.

Gradient Descent

Similar to RMSProp, AdaDelta (Adaptive Delta) is a proposed method to compensate for the shortcomings of AdaGrad. In the same way as RMSProp, AdaDelta calculates the exponential mean instead of the sum when calculating the gradient sum of squares(often denoted G). Instead of simply using the step size as η, the exponential mean value is used with the square of the change value of the step size.

$G = \gamma G + (1-\gamma)(\nabla_{\theta}J(\theta_t))^2$
$\Delta_{\theta} =  \frac{\sqrt{s+\epsilon}}{\sqrt{G + \epsilon}} \cdot \nabla_{\theta}J(\theta_t)$
$\theta = \theta - \Delta_{\theta}$
$s = \gamma s + (1-\gamma) \Delta_{\theta}^2$

AdaDelta (Deep Learning Optimization Algorithm)

Adam stands for adaptive moment estimation.
It combines gradient descent with momentum, and RMSProp. It brings the benefits from both sides - adaptive learning rate and faster convergence with momentum.

Adam (Deep Learning Optimization Algorithm)

- Stands for Root Mean Square Propagation
- RMSprop is a batch learning algorithm similar to AdaGrad that aims to deal with radically diminishing learning rates.

- Many times, gradients may be tiny, and others may be huge, which makes learning difficult — trying to find a single global learning rate for the algorithm.
RMSprop looks at the step size that’s defined for that weight instead of the magnitude of the gradient. The step size adapts individually over time, so that we accelerate learning in the direction that we need. In this way, RMSProp mimics initializing an instance of AdaGrad in a locally convex bowl, allowing it to converge rapidly there

RMSprop (Deep Learning Optimization Algorithm)

So one of the big disadvantages of momentum and nesterov momentum algorithms is that they heavily rely on the learning rate. So AdaGrad is one of the algorithms that modifies the learning rate as we go. The intuition behind the adaptive learning rate is that it goes slower with frequent features and goes faster with features that happen rarely.

AdaGrad (Deep Learning Optimization Algorithm)

In the momentum method we basically first moved our weight in the direction of the current gradient and then moved in the direction  of momentum (weighted sum of all previous steps). Now in the new method we first move in the direction of the momentum and then calculate the gradient at the new point. Using this gradient we move in the direction of the new gradient.

The update rules are as follows:
$$v \leftarrow \alpha v - \epsilon \nabla_{\theta} [\frac{1}{m} \sum^{m}_{i=1} L(f(x^{(i)};\theta + \alpha v), y^{(i)})]$$
$$\theta \leftarrow \theta + v$$

Nesterov momentum (Deep Learning Optimization Algorithm)

- **Local optima**: it's actually unlikely to get stuck in local optima.
- **Cliffs**: on the face of an extremely steep cliﬀ structure, the
gradient update step can move the parameters extremely far
- **Inexact Gradients**: sometimes approximation is needed for gradients
- **Plateaus**: low cost function slope (close to flat) makes learning slow.

Challenges with Deep Learning Optimizer Algorithms

Adam stands for: adaptive moment estimation. Briefly, this method combines momentum and RMSprop (root mean squared prop).
Like momentum alone, RMSprop smooths the gradient, (it takes RMSProp and applies momentum to the rescaled gradients). This alternative approach is best explained mathematically:

Adam introduces four hyperparameters:
- learning rate alpha
- beta from momentum (usually 0.9)
- beta2 from RMSprop (usually 0.999)
- epsilon (usually 1e-8)

As mentioned above, you usually do not need to tune beta, beta2, and epsilon as the values listed above will generally work well. Only the learning rate is left to tune in order to accelerate training.


Adam combines the advantages of AdaGrad and RMSProp these two optimization algorithms. It comprehensively considers the first moment estimation of the gradient (First Moment Estimation, the mean value of the gradient) and the second moment estimation (Second Moment Estimation, the uncentered variance of the gradient), and calculates the update step size.

Adam optimization algorithm


Adam is different to classical stochastic gradient descent (SGD). SGD maintains a single learning rate (alpha) for all weight updates and the learning rate does not change during training. Adam combines the advantages of AdaGrad and RMSProp. It not only adapts the parameter learning rates based on the average first moment (the mean) as in RMAProp, but also makes use of the average of the second moments of the gradients (the uncentered variance).

Difference between Adam and SGD

If we only have two features, $x_1$ and $x_2$, in order to minimize the loss function, we can apply gradient descent to update $w_1$, $w_2$, and $b$.
To compute the derivatives of $\mathcal L (a, y)$ with respect to $w_1$, $w_2$, and $b$, we need to compute the derivatives of $\mathcal L (a, y)$ with respect to $a$ and $z$ first.
$$\mathcal L (a, y) = -(ylog(a) + (1 - y)log(1 - a)) \Rightarrow$$
$$\frac{d\mathcal L (a, y)}{da} = -\frac{y}{a}+\frac{1-y}{1-a}$$
$$a = \sigma(z) = \frac{1}{1 + e^{-z}} \Rightarrow \frac{da}{dz} = a(1-a) \Rightarrow$$
$$\begin{aligned}
\frac{d\mathcal L (a, y)}{dz} & = \frac{d\mathcal L (a, y)}{da}\frac{da}{dz} \\
& = (-\frac{y}{a}+\frac{1-y}{1-a})*(a(1-a)) = a-y \\
\end{aligned}$$
$$\begin{aligned}
\frac{d\mathcal L (a, y)}{dw_1} & = \frac{d\mathcal L (a, y)}{dz}\frac{dz}{dw_1} = (a-y)*x_1 \\
\end{aligned}$$
$$\begin{aligned}
\frac{d\mathcal L (a, y)}{dw_2} & = \frac{d\mathcal L (a, y)}{dz}\frac{dz}{dw_2} = (a-y)*x_2 \\
\end{aligned}$$
$$\begin{aligned}
\frac{d\mathcal L (a, y)}{db} & = \frac{d\mathcal L (a, y)}{dz}\frac{dz}{db} = (a-y)*1 = (a-y)
\end{aligned}$$

Logistic regression gradient descent

The gradient $\nabla_x f(x)$ of a scalar function $f(x_1, x_2, x_3, ..., x_n)$ is defined as the unique vector field whose dot product with any vector $v$ at each point $x$ is the directional derivative of $f$ along $v$. That is,
$ \nabla_x f(x) \cdot  v = \nabla_v f(x) $

The directional derivative in direction $v$ (a unit vector) is the slope of the function $f$ in direction $v$, namely the rate of increase of $f$ per unit of distance moved in the direction given by $v$.

To minimize $f$, we would like to ﬁnd the direction in which $f$ decreases the fastest. We can do this using the directional derivative:
$\min_{v, v^Tv = 1} \nabla_x f(x) \cdot  v= \min_{v, v^Tv = 1} ||\nabla_x f(x)||_2 ||v||_2 \cos \theta$
where θ is the angle between $v$ and the gradient. Substituting in $||v||_2= 1$ and ignoring factors that do not depend on $v$, this simpliﬁes to $\min_{v}cos θ$.

This is minimized when $v$ points in the opposite direction as the gradient. In otherwords, the gradient points directly uphill, and the negative gradient points directly down hill. We can decrease $f$ by moving in the direction of the negative gradient.

Hence we have $x' = x-\alpha \frac{df(x)}{dx}$ where $\alpha$ is the learning rate, a positive scalar determining the size of the step.

Derivation of the Gradient Descent Formula

Epoch is every iteration of gradient descent through the entire training set.

Epoch in Gradient Descent

For logistic regression, the gradient is given by ∂∂θjJ(θ)=1m∑mi=1(hθ(x(i))−y(i))x(i)j. Which of these is a correct gradient descent update for logistic regression with a learning rate of α?

Does adding polynomial features (e.g., instead using $h\theta(x)=g(\theta0+\theta1x1+\theta2x2+\theta3x21+\theta4x1x2+\theta5x22) )$ could increase how well we can fit the training data?

Suppose you have the following training set, and fit a logistic regression classifier $h\theta(x)=g(\theta0+\theta1x1+\theta2x2)$.

Backpropagation is a systematic computational procedure for applying the chain rule to calculate gradients automatically. It operates by traversing a computational graph in a backwards direction—from the output loss back to the input parameters—multiplying matrices of partial derivatives at each step to determine how parameters affect the final output.
